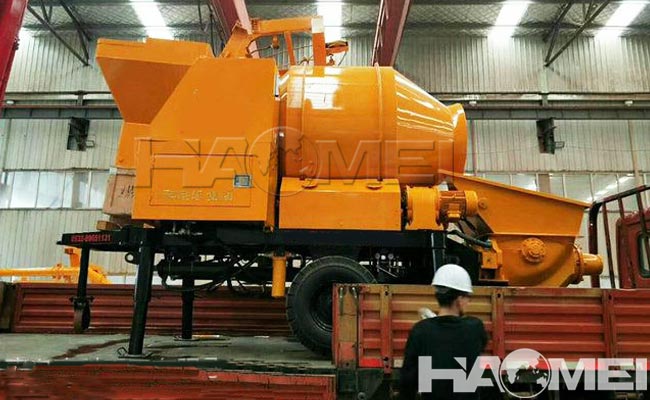

JBT40 40m3/h Diesel Concrete Mixer Pump
In the small and medium-sized construction market, construction in remote towns, suburban areas, and power-deficient regions consistently faces common challenges such as reliance on power supply, dispersed equipment, and low efficiency. Haomei Machinery, with over a decade of experience in exporting concrete machinery, has launched the JBT40 40m3/h diesel concrete mixer pump for the global market. Powered by its own diesel engine, concrete mixer pump integrates forced mixing and high-pressure pumping functions, precisely covering residential, commercial, and small-scale infrastructure projects with heights of 20-30 meters. Completely eliminating grid limitations, it has become a cost-effective choice for overseas small and medium-sized engineering contractors.
The core competitiveness of 40m3/h diesel concrete mixer pump equipment stems from the deep matching between the diesel power system and the 40m3/h pumping performance. The JBT40 diesel concrete mixer pump is equipped with a high-power water-cooled diesel engine, providing ample power reserves and strong adaptability to different grades of diesel fuel, enabling stable operation in markets with significant oil price fluctuations, such as Africa and Southeast Asia. Its theoretical conveying capacity reaches 40 m³/h, with a maximum pumping pressure of 10 MPa and a rated vertical conveying height of 25-30 meters, fully meeting the continuous pouring requirements of buildings up to 6 stories. The pumping system employs an S-tube valve reversing structure, ensuring smooth reversing, excellent sealing, and a blockage rate far below the industry average. It is compatible with aggregates of 5-40 mm particle size and C20-C35 grade concrete, meeting the building material supply standards of most regions worldwide.
The integrated mixing and pumping process restructures the construction workflow for small and medium-sized construction sites. The 40m3/h diesel concrete mixer pump equipment uses a drum-type forced mixing system with a single drum mixing capacity of 0.45 m³, featuring a short mixing cycle and excellent output uniformity. Seamless integration from mixing to pumping ensures fresh concrete is delivered to the work surface immediately, effectively reducing slump loss and material transfer losses. The entire machine is integrated onto a single trailer chassis, occupying only 40% of the space of traditional split-type equipment. It can be flexibly moved via a tractor, adapting to scenarios with limited space, such as urban construction and rural road repair. The entire system requires only one operator to complete the entire operation, reducing labor input by more than 50% compared to the separate "concrete mixer + concrete pump" combination, and increasing overall construction efficiency by more than four times.
Addressing the complex working conditions in different regions worldwide, the JBT40 diesel concrete mixer pump is designed with enhanced environmental adaptability and durability. Core components of the hydraulic system are sourced from internationally renowned brands, employing an open hydraulic circuit for stable operation and a low failure rate. Wear parts such as the mixing blades, conveying cylinders, and spectacle plates are made of high-chromium wear-resistant alloy, extending service life by 60% compared to ordinary materials. The electrical system features a dustproof and waterproof sealed structure, coupled with a high-efficiency cooling system, enabling continuous operation in environments with temperatures up to 45℃, dusty conditions, and high altitudes. Each unit undergoes 800 hours of full-load continuous operation testing before leaving the factory, covering multiple simulated scenarios including high and low temperatures and load fluctuations, ensuring immediate deployment for high-intensity construction upon delivery.
40m3/h diesel concrete mixer pump equipment has already been deployed and validated in multiple power-deficient areas worldwide. In a residential cluster project in Cape Verde, West Africa, where the construction island lacked stable municipal power, the client purchased three sets pf JBT40 concrete mixer pumps to handle the pouring of concrete for 12 six-story residential buildings. Each unit consistently produced over 120 cubic meters of concrete per day, operating continuously for four months without major malfunctions. Compared to traditional manual construction methods, the project timeline was shortened by 42%, and overall costs decreased by 35%. In a rural infrastructure project in mountainous areas of Vietnam, Southeast Asia, the 40m3/h concrete mixer pump equipment, using a trailer chassis, moved along simple mountain roads and completed the pouring of multiple public facilities under power-deficient conditions. The equipment's reliability and ease of operation were highly praised by the construction team.
As a global concrete machinery manufacturer, Haomei Machinery provides a complete export service system for global clients, offering full-process support from selection guidance and on-site commissioning to operator training. We also maintain spare parts warehousing in key markets to ensure rapid supply of vulnerable parts. The 40m3/h diesel concrete mixer pump is not only a construction tool but also a complete pouring solution for small and medium-sized projects in power-deficient overseas locations. With stable performance and since services, it consistently helps global clients efficiently advance their projects.
