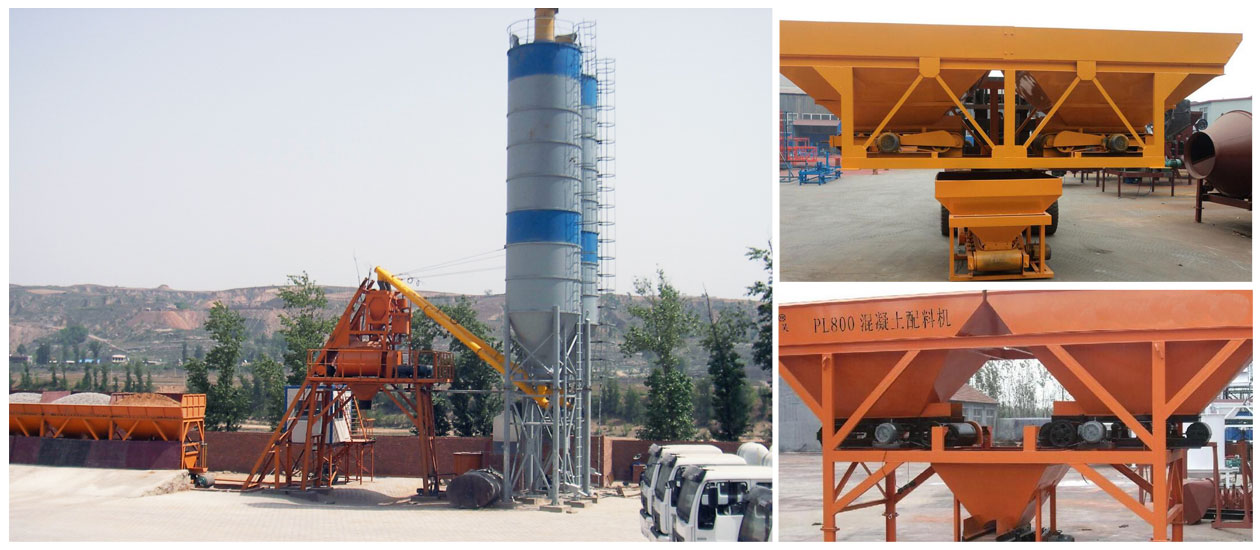

Aggregate Weighing System of HZS50 Self-loading Batching Plant
Aggregate weighing system of self-loading batching plant composed by: aggregate storage, rack, weighing hopper, aggregate conveyors, sensors and other components.
1, Aggregate storage
(1) Capacity: 4 × 25m3 = 100m3
(2) blanking gate: 8
(3) of the cylinder: QGB80 × 300 8 units
2, Weighing hopper
(1)Capacity: 2.5m3 × 4
(2)Measurement methods: single measurement
(3)Sensor: 2000kg × 16
(4)the cylinder: QGB80 × 280 4 units
(5) Measurement accuracy: ± 2%
3, Belt conveyors
(1) Belt Specifications: 1000mm
(2) belt speed: 2 m / s
4, Electric drum
(1) Model: YZ11-2-100 × 63 Power: llkw
(2) Transmission capacity: 1200t / h
5, Vibrators: ZFl8-50 2 sets
