Mini Concrete Mixer Pump Price

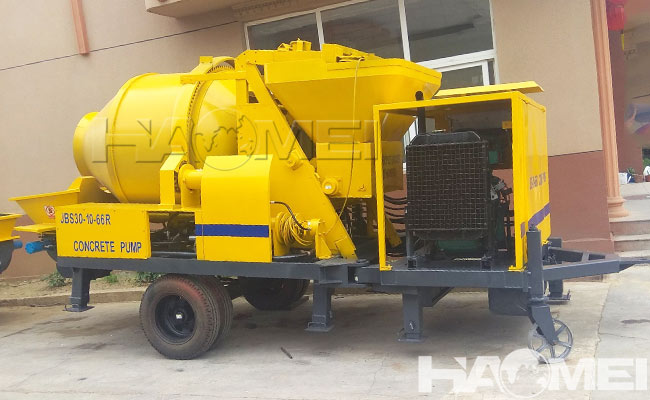

The mini concrete mixer pump price is reasonable when compared with concrete mixer machine plus concrete pump machine. This concrete delivery pump is equipped with a hoist, a hopper and a drum on the basis of the conventional concrete pump, in order to facilitate the construction. Now we will introduce its parameters and performance in detail.

The mini concrete mixer pump price is low due to small model. 500 type mini concrete mixer pump machine is 4.5 meters long, 1.9 meters wide and 3.5 meters high. The oil weight of the whole machine is 3.85 tons, the volume of the fuel tank is 130L, and the volume of the hopper is 500L. The concrete mixer pump is connected to three-phase electricity. If it is inconvenient to use electricity, a 100kw generator can be installed. The main motor power of this mini concrete mixer pump is 37kw, the outlet pressure during pumping is 8Mpa, the range of concrete slump: 120-230mm, and it can transport 30-40 cubic meters of concrete in one hour, and can hit large particles and fine stones within 5 cm. It can be used for horizontal conveying of 200 meters and vertical conveying of 80 meters. It is especially suitable for pumping of cast-in-place roofs and self-mixing materials in rural construction.

This mini concrete mixer pump is especially suitable for the construction of rural townships and villages. One device and three functions can realize the feeding, mixing and pumping operations during construction, which saves the need for purchasing or leasing a mixer truck. It also saves a lot of money and space. It is worth mentioning that this mixing pump adopts the technology of hydraulically driven drum. Automatic feeding can avoid a series of problems such as wire rope breakage, hopper tipping, derailment, topping, and hoisting motor failure, making it safer and more reliable.
