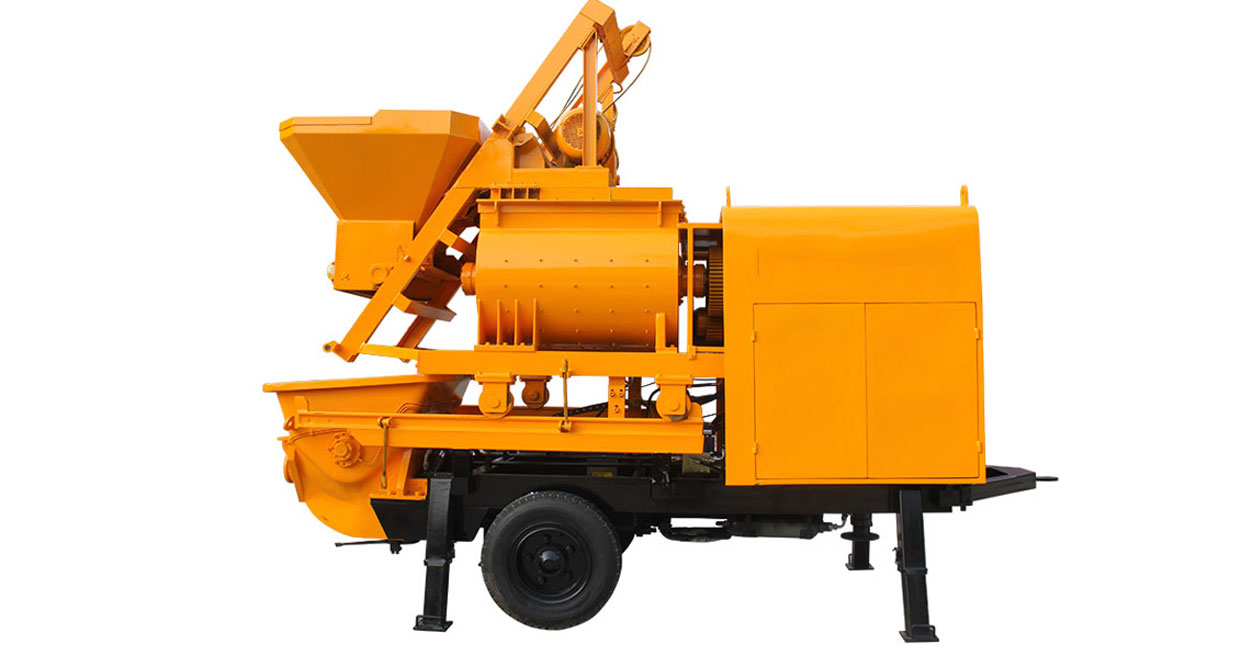

JS series Self Loading Mobile Concrete Mixer:

JS series self loading mobile concrete mixer belongs to the twin shaft forced concrete mixer, which can be mixed dry hard, plastic, liquidity, light aggregate and other concrete and a variety of mortar.

The self loading mobile concrete mixer drum is equipped with high-manganese wear-resistant cast steel liner and mixing blades, features rugged and easy to replace. Match with kinds of aggregate batching machine, which compose of many types of concrete mixing plant.

Self loading mobile concrete mixer features reasonable design, compact structure, convenient operation, reliable operation and easy to delivery, which can be operated single or together with batching machine and cement silo to shape a new concrete mixing plant

Model Parameter Items of JS series Self Loading Mobile Concrete Mixer:

1. JS500, JS750, JS100 discharging capacity is 500L, 750L, 1000L
2. Feeding capacity is 800L, 1200L, 1600L
3. Productivity is ≥25m3 / h, ≥37.5m3 / h, ≥50m3 / h
4. Mixing blade speed 35r / min, 31r / min, 25.5r / min
5. Mixing motor model: Y180M-4, Y200L-4, Y225S-4
6. Power: 18.5KW, 30KW, 37KW
7. Winding Motor Model YEZ1325-4-B5, YEZ132M-4-B5-4, YEZ160S-4
