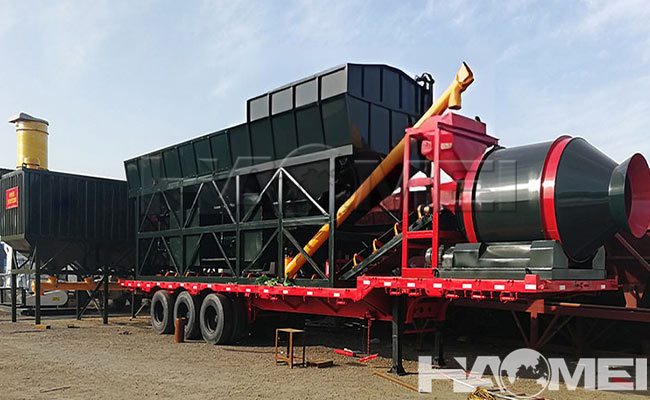

The YHZM75 drum mobile concrete batching plant is a large model of mobile batching plant with drum mixer.
Features of JZM Series Mobile Concrete Batching Plant：
1. Aggregate batching and transferring is automatic and precise;
2. Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging;
3. The whole plant chassis can be moved easily, don't need to be separated and assembled;
4. This plant is designed to work without foundation, even cooperate working with horizontal cement silo;
5. Compared with twin-shaft concrete mixer plant, this concrete batching plant is cheap and save the shipments cost.
General Parameters
|
Model |
YHZM75 |
|
Capacity |
75m3/h |
|
Concrete mixer |
JZM1500 |
|
Cycle time |
1.5 minutes |
|
Weighing accuracy |
Aggregate |
±2% |
|
Cement |
±1% |
|
Water |
±1% |
|
additive |
±1% |
Detailed configuration parameters
1.
Concrete mixer
|
Model |
JZM1500 |
|
Feeding capacity |
1600L |
|
Discharge capacity |
1000L |
|
Mixing capacity |
60m³/h |
|
Mixing motor power |
11kw*2 |
|
Water power |
3kw |
|
Mixing time |
20s |
|
Discharge height (working condition) |
1185mm |
2.
Aggregate batcher
|
Model |
PLD1600-3 |
|
Storage hopper Capacity |
7m³*3 |
|
Weighing hopper capacity |
1600L |
|
Motor power |
4kw*3 |
|
Sand bin vibration motor power |
0.37kw*1 |
|
Sensor |
1000kg*3pull |
|
Belt conveyor |
500*10500mm*1 ,600*8500mm*1,500*4200mm*1 |
|
Feeding height (working condition) |
3290mm |
3.
Weighing Scales
|
Cement weighing system |
Volume of cement weighing hopper |
0.6m³ |
|
Pneumatic butterfly valve |
￠300 |
|
Sensor |
500kg*3 |
|
Water weighing system |
Volume of water weighing bucket |
0.4m³ |
|
Water Pump power |
1.5kw |
|
Pneumatic butterfly valve |
￠80 |
|
Sensor |
300kg*3 |
|
Additive weighing system |
Volume of additive weighing bucket |
0.03m³ |
|
Pneumatic valve |
￠50 |
|
Sensor |
50kg*1 |
4.
Pneumatic system
|
Air compressor |
0.6m³ |
|
cylinder |
AKS |
5.
Control system
|
Strong and weak current cabinet |
Integrated strong and weak current cabinet |
6.
Mobile chassis
|
Size of mixing plant chassis |
10.92M*2M |
|
Tyre type and quantity |
￠1100mm*8 |
