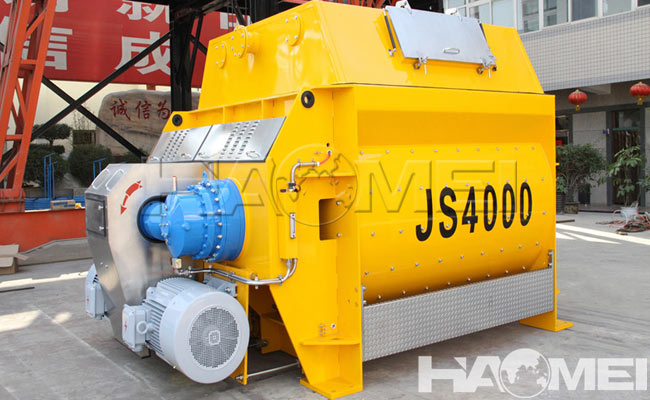

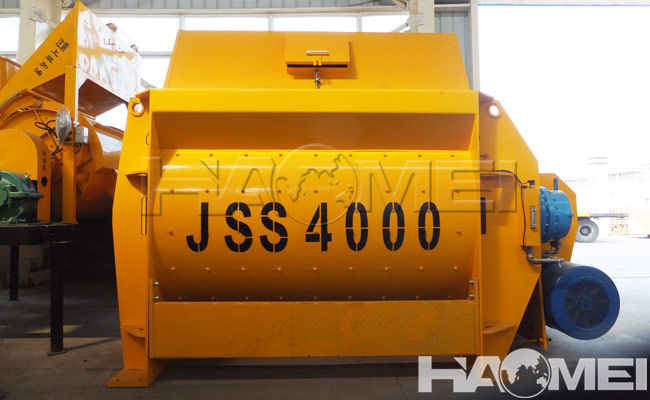

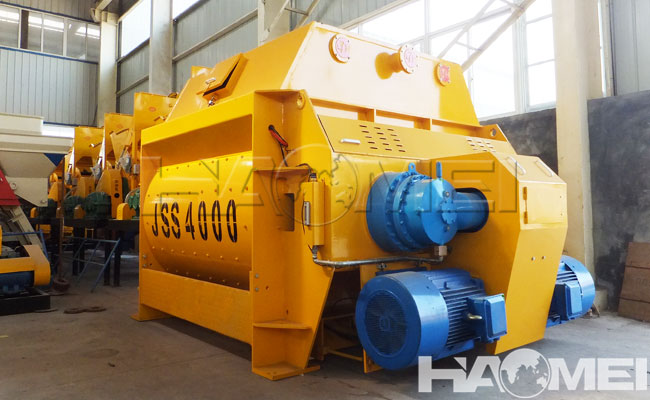

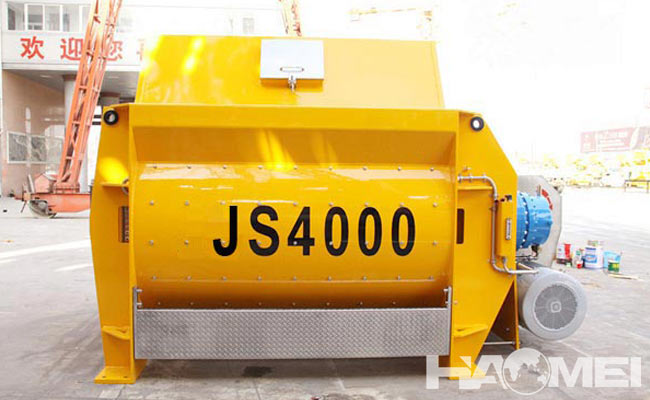

JS4000 Concrete Mixer
JS4000 concrete mixer is a heavy-duty, twin-shaft forced concrete mixer featuring a 4000L discharge capacity and an output of 200–240 m3/h. It is widely used as the core mixing unit in large commercial concrete batching plants for roads, bridges, and major construction projects.
The Description of JS4000 Concrete Mixer:
1, The main parts of mixing console adopt domestic and foreign advanced manufacturers, professional skills, assembler, tight assembly process, to ensure about the performance excellence of JS4000 concrete mixer.2, The reducer and motor equipped with a professional manufacturers of high-performance products
3, The shaft bearings made of high quality ductile iron castings, to further improve the impact resistance of the product
4, The use of advanced hydraulic system discharge opening and closing doors facilitate perfusion mixer, in the case of sudden power outages which can also be opened to use a manual pump discharge valve for emergency discharge.
5, The hole and end of concrete mixer tank body were a fixture precision machining, to ensure concerntricity stirring shaft ends and the stirring more evenly to keep longer life.
6, Automatic lubrication system, which uses four pumps to ensure a balanced oil pressure of each axis head, running smooth and improve the effectiveness and shaft seal life to achieve the least fuel consumption.
The Parameters of JS4000 Concrete Mixer:
| JS4000 Concrete Mixer | |
| Specification | Value |
| Discharging Volume | 4000l |
| Charging Volume | 6000l |
| Mixer Capacity | 4m3 |
| Aggregate Size | 80/150mm |
| Working Circle | 30sec |
| Mixer Motor Power | 2x75kw |
| Weight | 12200kg |
| Dimensions | 4670x2600x2200mm |

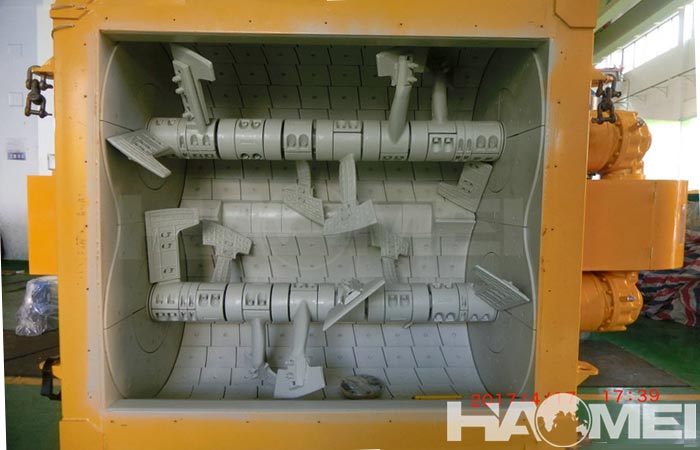

Structure of JS4000 Concrete Mixer:

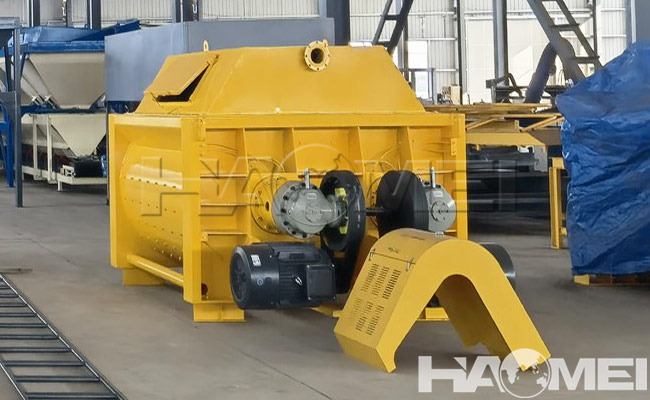

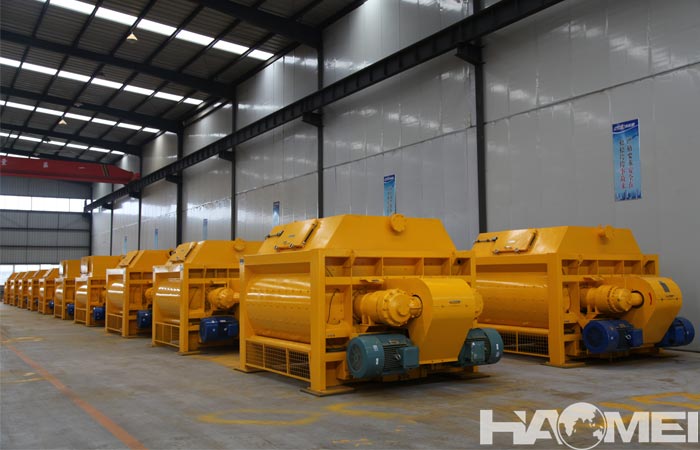

Factory of JS4000 Concrete Mixer:
